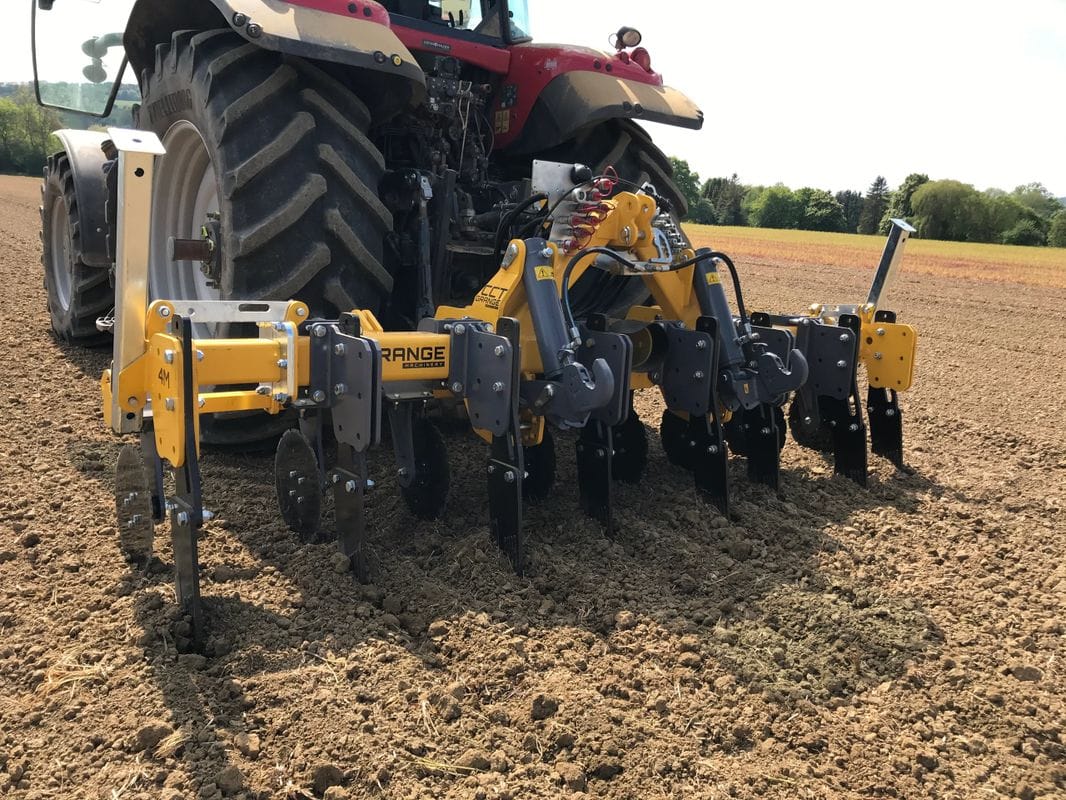

The Grange Machinery Close Coupled Toolbar (CCT) Track Eradicator is a versatile cultivation solution designed for modern arable farming, regenerative agriculture, compaction management and minimum tillage systems. Developed to alleviate soil compaction caused by heavy machinery while providing compatibility with a wide range of mounted and trailed implements, the CCT offers growers a flexible, efficient and cost-effective approach to soil management and crop establishment.

Available from Irelands Farm Machinery, trusted suppliers of new and used farm machinery, cultivation equipment and specialist agricultural machinery across Lincolnshire and the UK.

Key Features

• 3m Track Eradicator working width
• Hydraulic rear linkage for mounted implements
• PTO compatible for power harrows and PTO-driven equipment
• Compatible with mounted and trailed implements
• Detachable A-frame and clevis as standard
• Four low disturbance loosening legs
• Working depth up to 300mm (12 inches)
• Variable leg spacing for wheel and track centres
• Rear hydraulic services for implements
• Compact design measuring just 650mm from tractor linkage to rear linkage
• Ideal for reducing soil compaction and restoring soil structure
• Suitable for regenerative and minimum tillage systems

Specification

• Make: Grange Machinery
• Model: Close Coupled Toolbar (CCT)
• Type: Track Eradicator
• Working Width: 3 metres
• Low Disturbance Legs: 4
• Maximum Working Depth: 300mm (12″)
• Variable Leg Spacing
• Rear Hydraulic Linkage
• Detachable A-Frame and Clevis
• PTO Compatible
• Rear Hydraulic Services
• Compact Close-Coupled Design
• Suitable for Mounted and Trailed Implements

Condition

• New
• Professional agricultural specification
• Ready for work

Additional Information

The Grange Machinery Close Coupled Toolbar (CCT) has been designed as a highly versatile machine capable of working with both mounted and trailed implements. Its unique design allows operators to use PTO-driven machinery such as power harrows up to 4 metres wide while simultaneously addressing soil compaction issues caused by modern heavy farming equipment.

The machine features a hydraulic rear linkage and detachable A-frame system, enabling operators to tow implements while maintaining the correct working height. By hydraulically floating the rear linkage rams and pre-setting the linkage height, the CCT allows the loosening legs to be fully lifted clear of the ground while maintaining optimum towing geometry for the rear implement.

Equipped with four Grange Low Disturbance loosening legs, the CCT is specifically designed to lift and fracture compacted soils to depths of up to 300mm (12 inches) without excessive soil disturbance. This helps improve water infiltration, root development and soil structure while preserving valuable crop residues and soil biology.

The variable leg spacing allows the machine to be tailored to different wheel or track centres, making it particularly effective at removing wheelings created by tractors, combines and heavy cultivation equipment. Many growers use the CCT during drilling operations to eradicate wheelings on the final pass, while others utilise it immediately after harvest to restore soil structure ahead of autumn cultivations.

Its compact design places the rear linkage just 650mm behind the tractor linkage, minimising weight transfer and maintaining excellent machine balance, even when operating mounted or PTO-driven implements.

For progressive farming businesses focused on improving soil health, reducing compaction and enhancing establishment performance, the Grange Machinery Close Coupled Toolbar Track Eradicator offers an innovative and highly effective solution.
