GRANGE MACHINERY CLOSE COUPLED TOOLBAR (CCT)

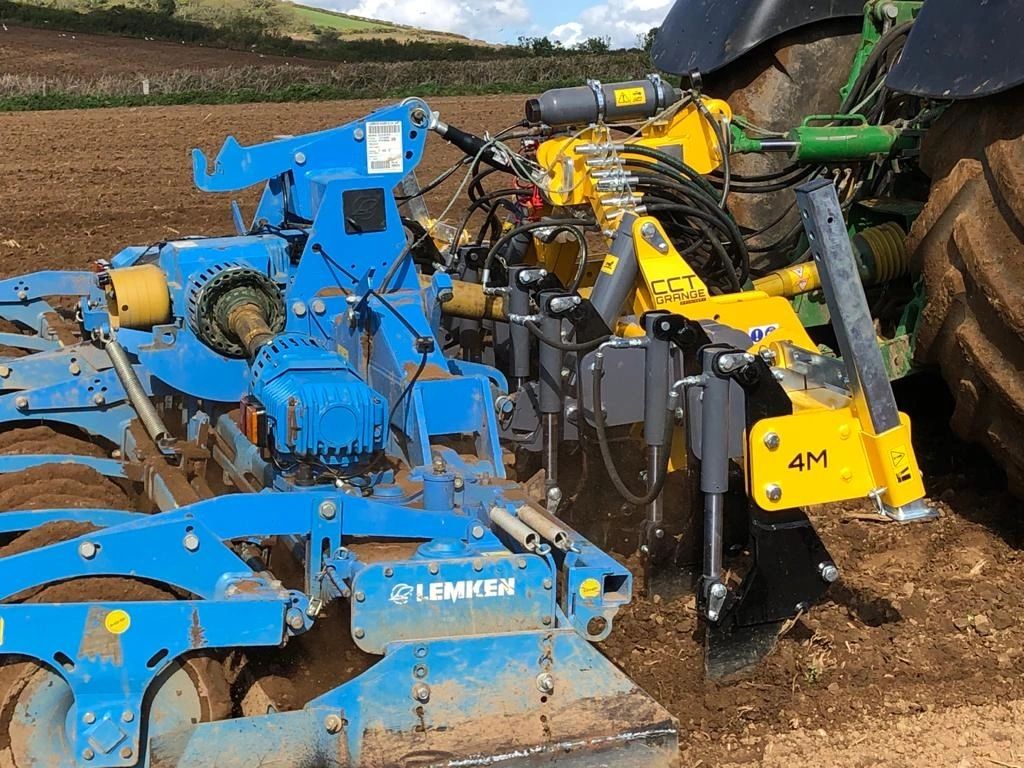

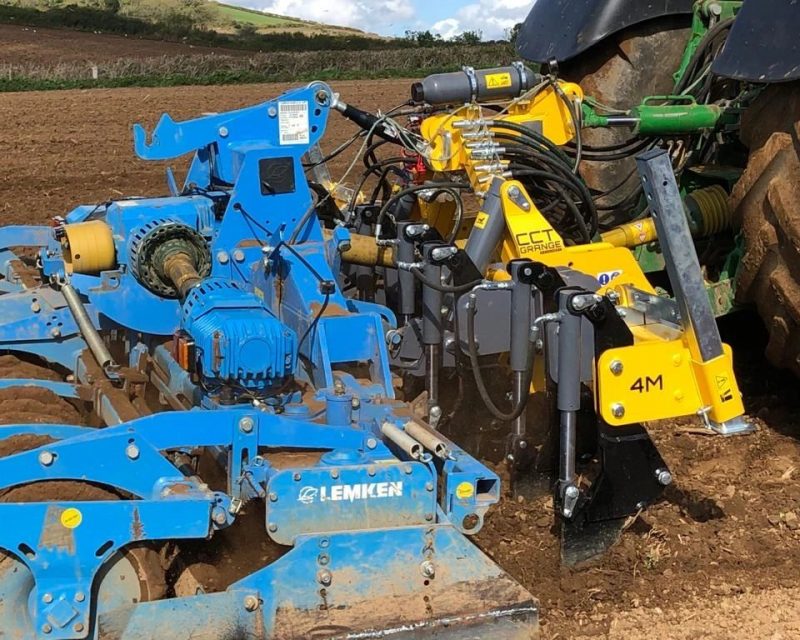

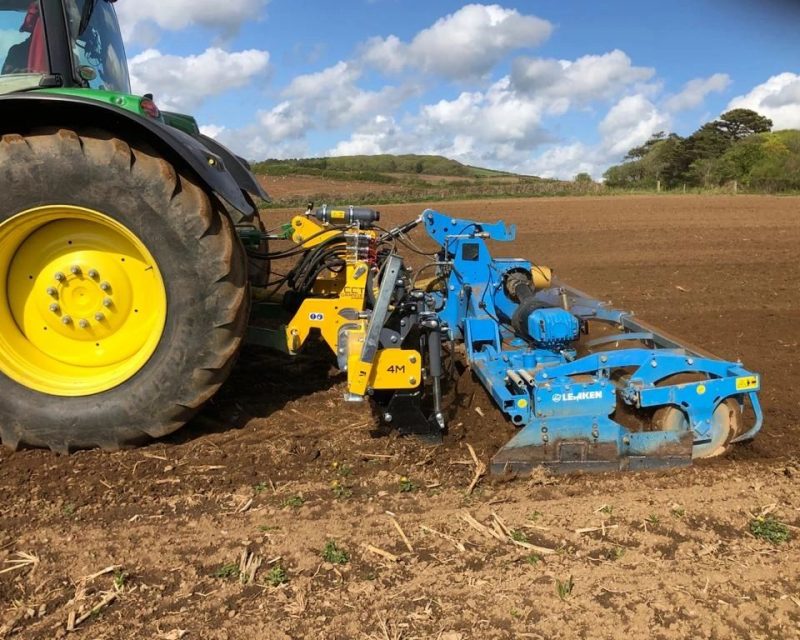

4m CCT – Hydraulic rear linkage for 3 point link mounted machines and PTO driven implements

The Toolbar can be used with 3 point link mounted machines and PTO driven machines such as power harrows up to 4m wide.

The Close Coupled Toolbar is designed to be used as a versatile machine that can be used with both mounted and trailed implements. We offer the CCT as a Track Eradicator, 3m and 4m working width machine. The Toolbar can be used with 3 point link mounted machines and PTO driven machines such as power harrows. This machine comes with an ‘A’ frame as standard that enables the user to trail machines and still preserve the towing height by hydraulically floating the rear hydraulic rams and having a pre-set upwards linkage height. This allows the machine tines to be fully out of work whilst still towing the rear implement at its desired towing height.

c/w 3m track eradicator working width,  x4 low disturbance loosening legs with a range of 300mm working dept, Leg spacing – Variable leg spacing to accommodate wheel or track centres, rear hydraulic linkage – with a detachable ‘A’ frame and clevis, compact design- 650mm from tractor linkage to rear of the close coupled linkage, rear hydraulic services for implements, PTO compatible to be used with mounted machines.

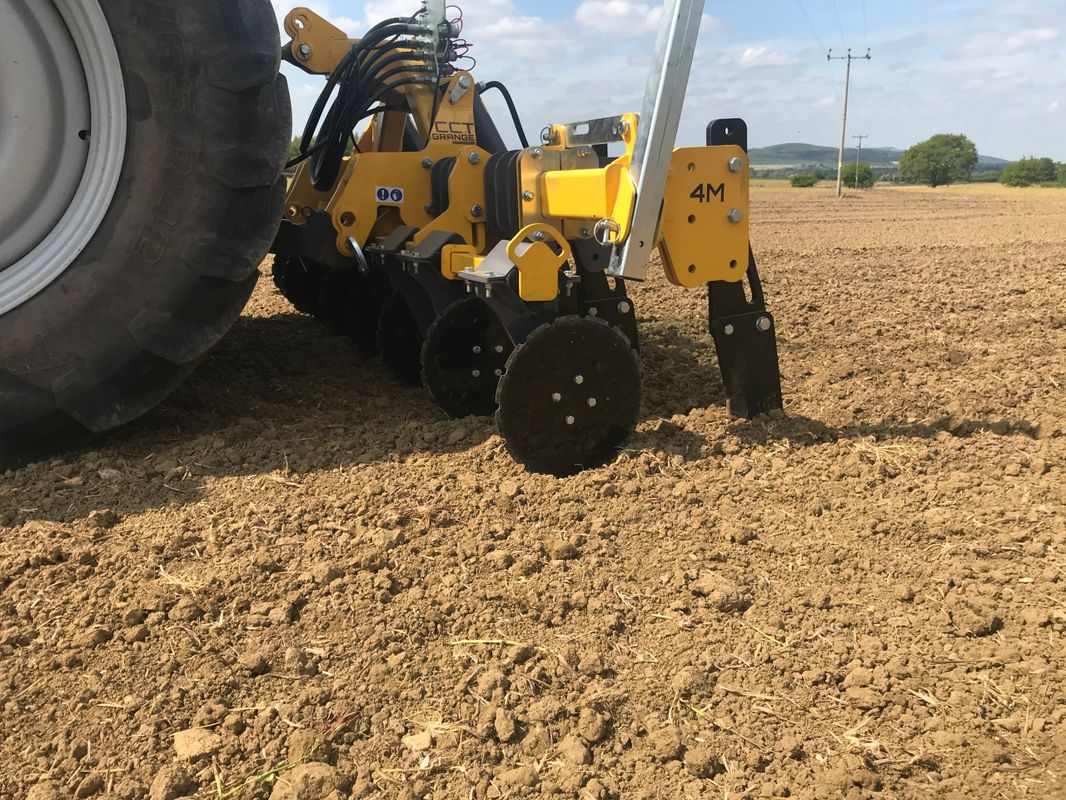

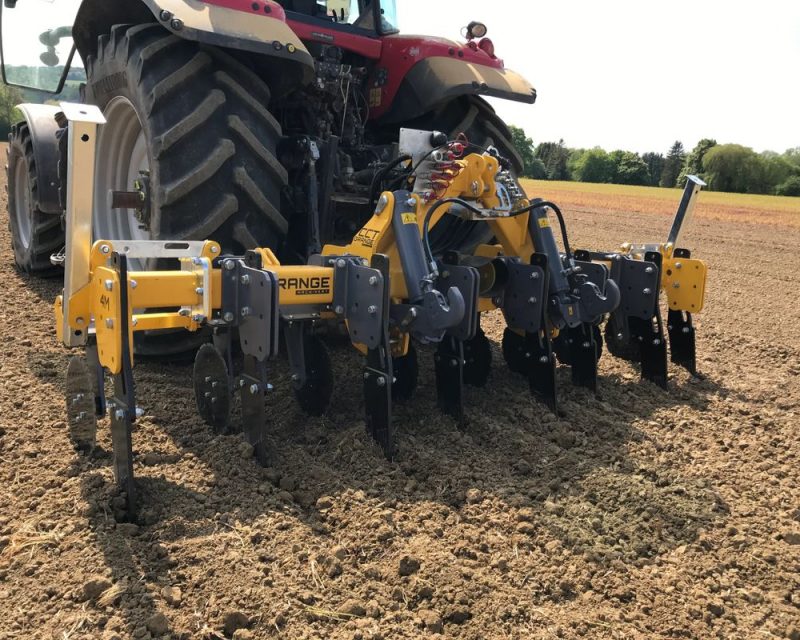

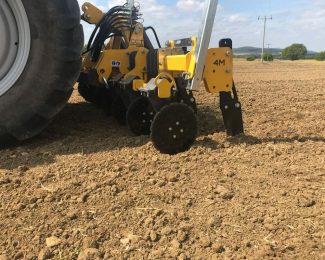

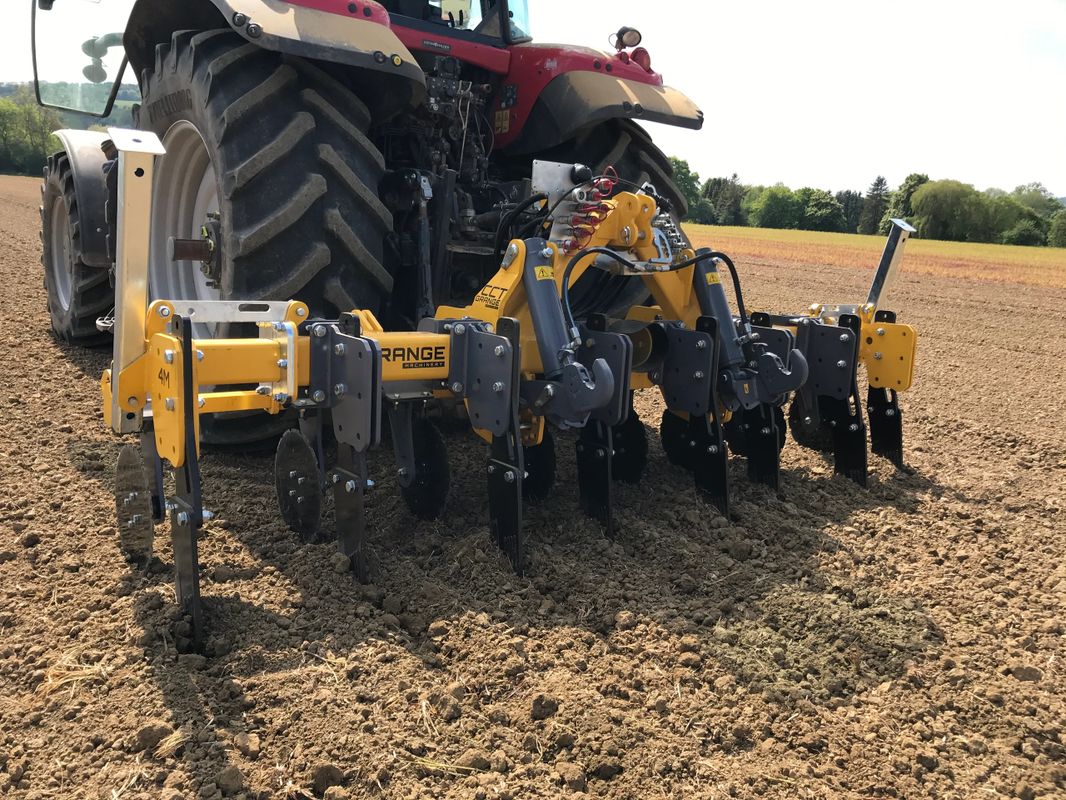

Close Coupled Track Eradicator

Designed for farmers running heavy equipment and struggling with tractor wheelings compacting the soil. The machine has Grange Machinery Low Disturbance legs that are used to lift compacted soils up to 12″. The CCT can be used to remove tractor wheelings on the last pass whilst drilling or earlier on in the season post combining.
