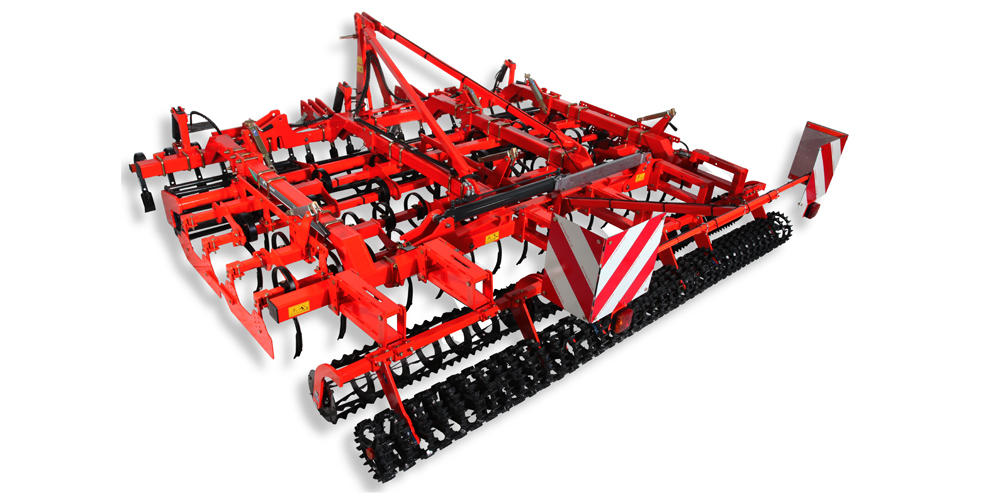

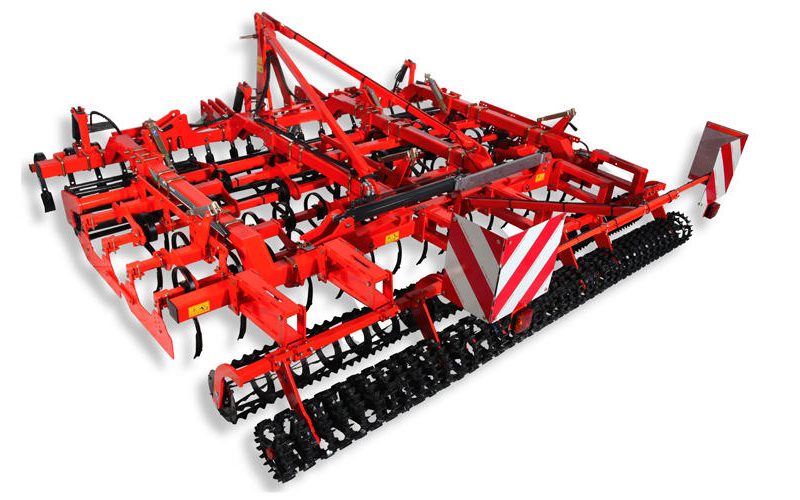

KVERNELAND TLG CULTIVATOR

Precision Seedbed Cultivator

The TLG is a heavy-duty precision cultivator designed for the optimum preparation of seedbeds for sugar beet, potatoes and vegetables.

The TLG consists of four working zones: the robust levelling board in the front, an effective cage roller for depth control, four rows of effective S-tines and a finger harrow or a single or double roller at the rear. This combination makes the TLG an ideal cultivator for the preparation of a very firm, levelled and fine seedbed. The flexible “bolt-on” principle allows changing the position of the cage roller from the front to in between the tine sections. Available working widths: 4.0, 5.0 and 6.0m.

The Advantages:

• Seed bed preparation from 4.0 to 6.0m
• Well adapted to seedbed preparation for maize, sugar beet, potatoes and vegetables
• Precise depth control with tube roller
• Infinite screw adjustment for easy and fast setting
• Tines working angle adjustable from 50 to 90°
• Frame made of 3 sections to follow ground contours

Model Working width (m) Weight (kg) Min. Power requirement (kW/HP) TLG 400 4.0 1880 65/90 TLG 500 5.0 2345 85/120 TLG 600 6.0 2590 100/140

For more information please call your Local Depot
