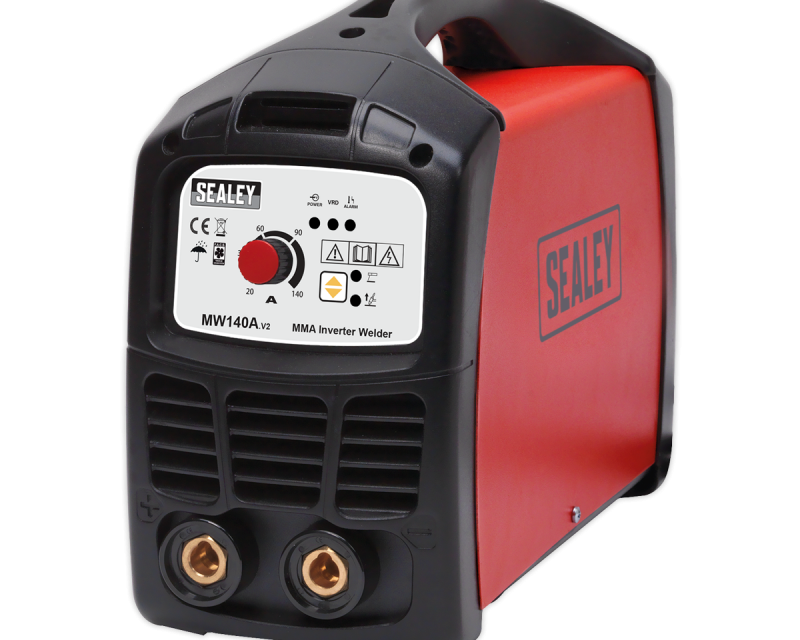

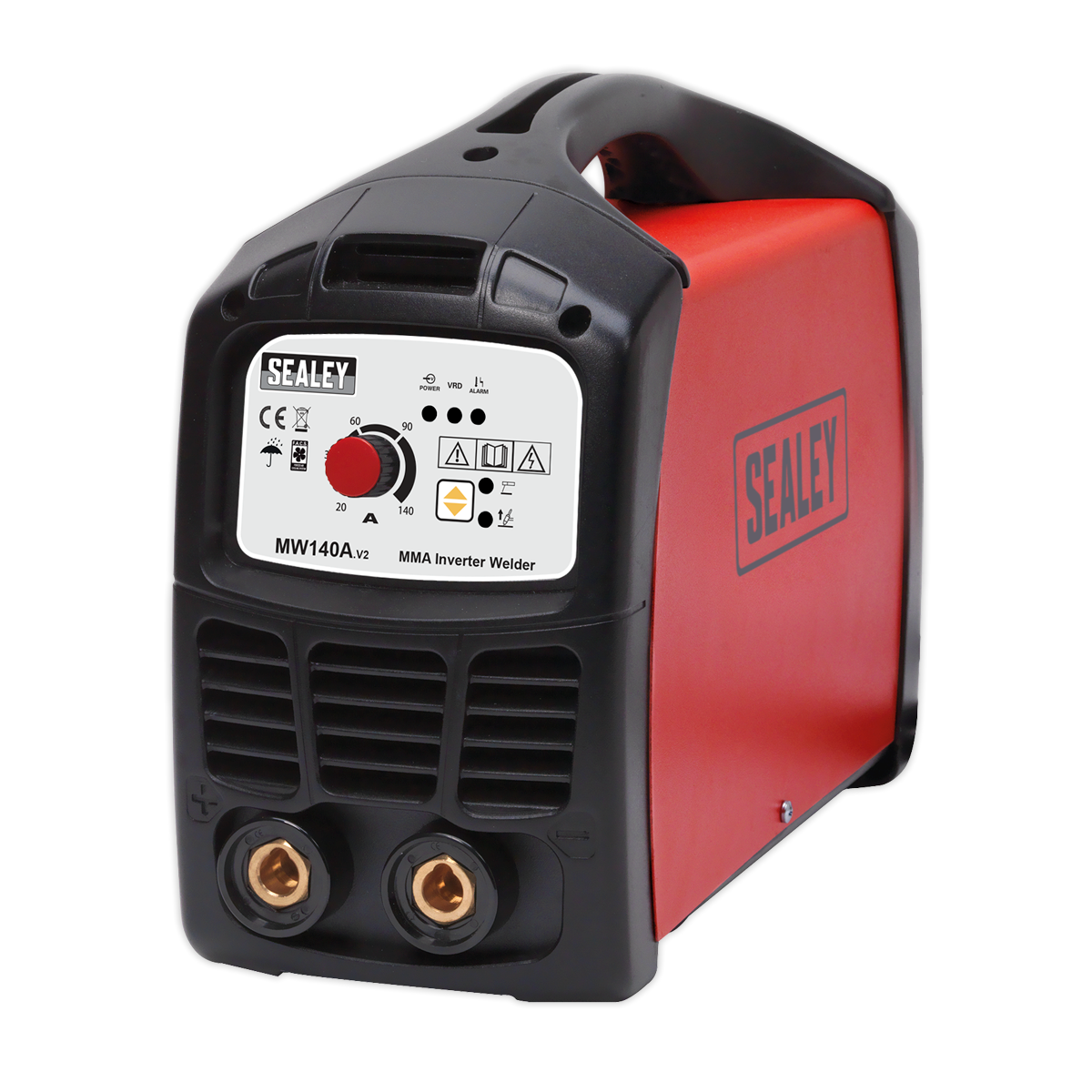

INVERTER WELDER 140A 230V Compact and lightweight unit weighing 5.5kg, is suitable for arc welding using the lift start method. Unit can arc weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø3.2mm. Features thermal cut-out protection. Portability allows the welder to be taken to the job at hand, ideal for the mobile technicians. Supplied with 2m 16mm² cable with electrode holder and a 2m 16mm² earth clamp and cable. Forced air cooling system with 2 fans. Optional TIG accessory kit available Model No. TIG10S. Supplied in a storage case.

Price Includes VAT

Specifications

Nett Weight: 7.12kg Welding Current: 20-140A Duty Cycle: 100% @ 63A, 60% @ 81A, 20% @ 140A Electrode Capacity: Ø1.6-3.2mm Absorbed Power: 4.64kW Supply: 230V* Protection: IP21S Weight: 5.5kg TIG Accessory Kit (Optional): TIG10S Note: *To achieve maximum power a 32A supply may be required.
